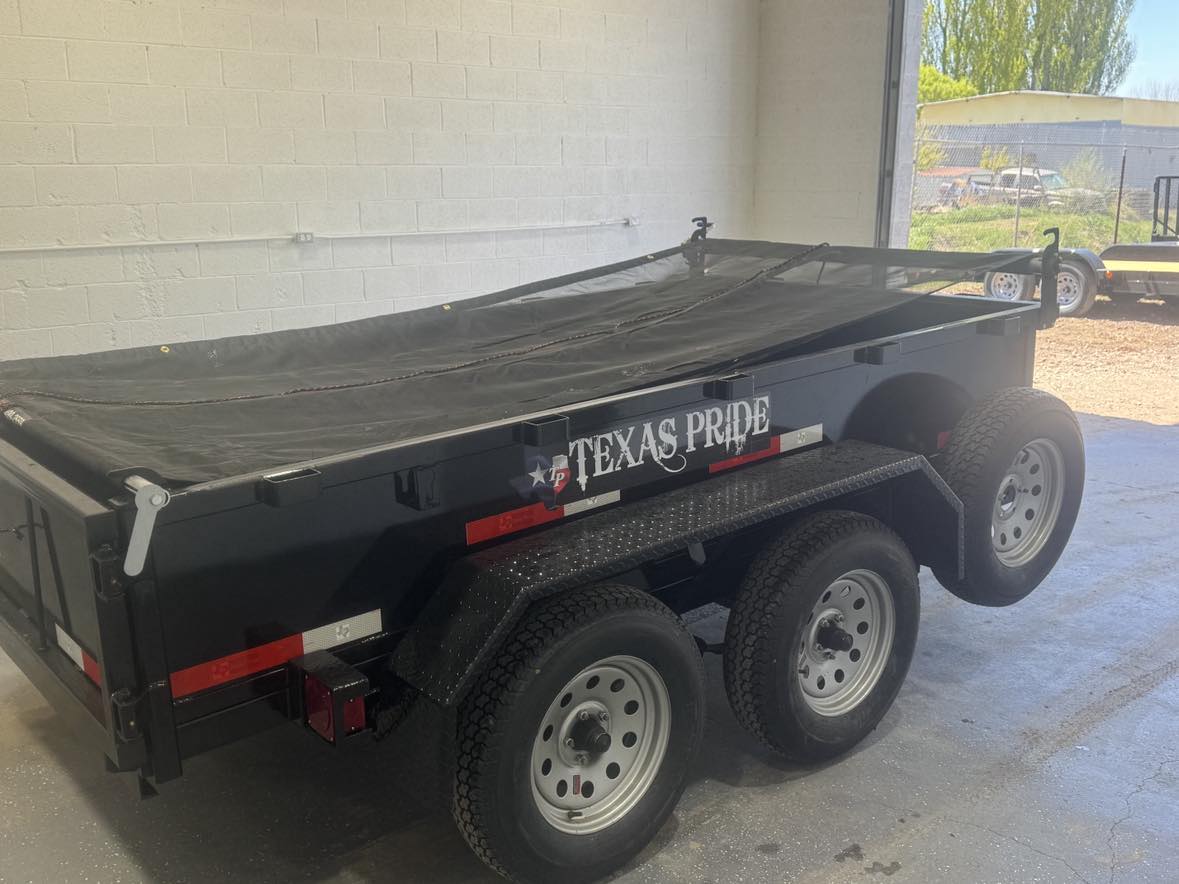

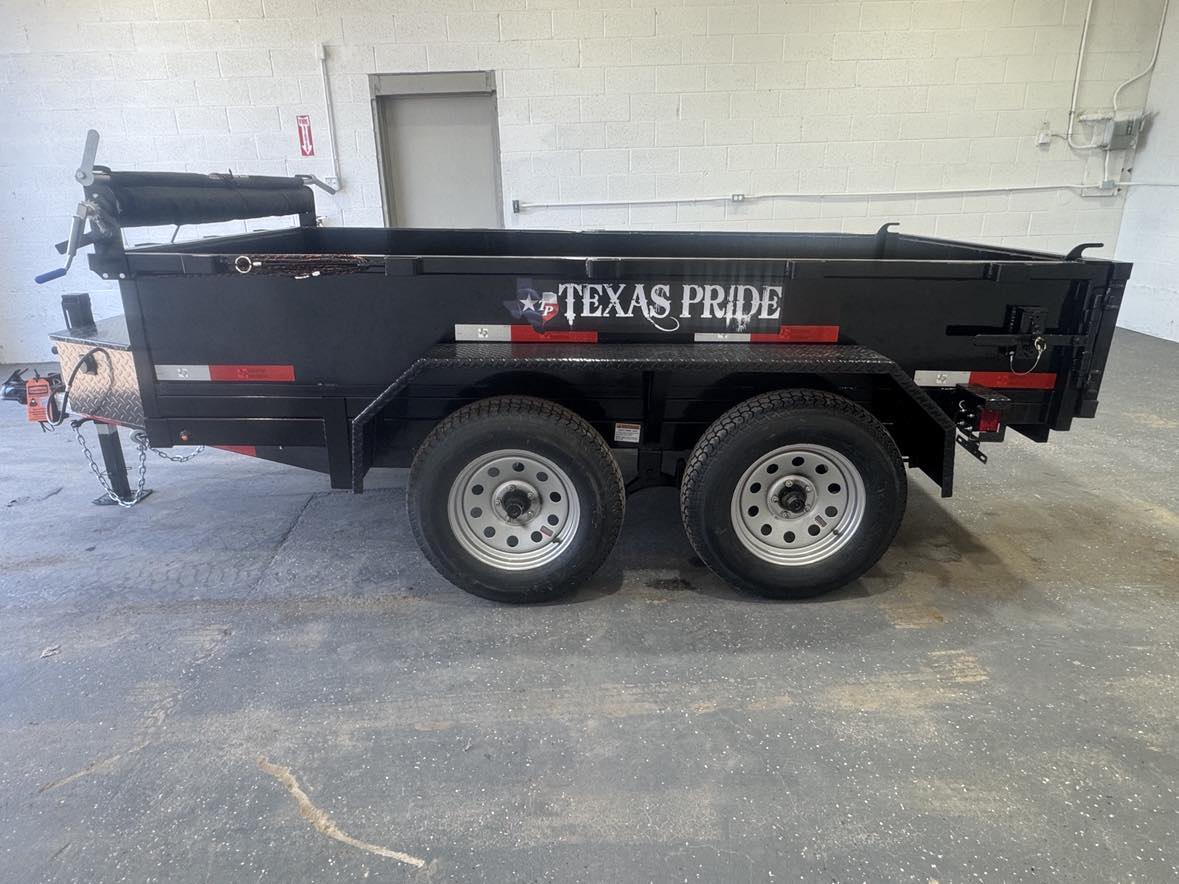

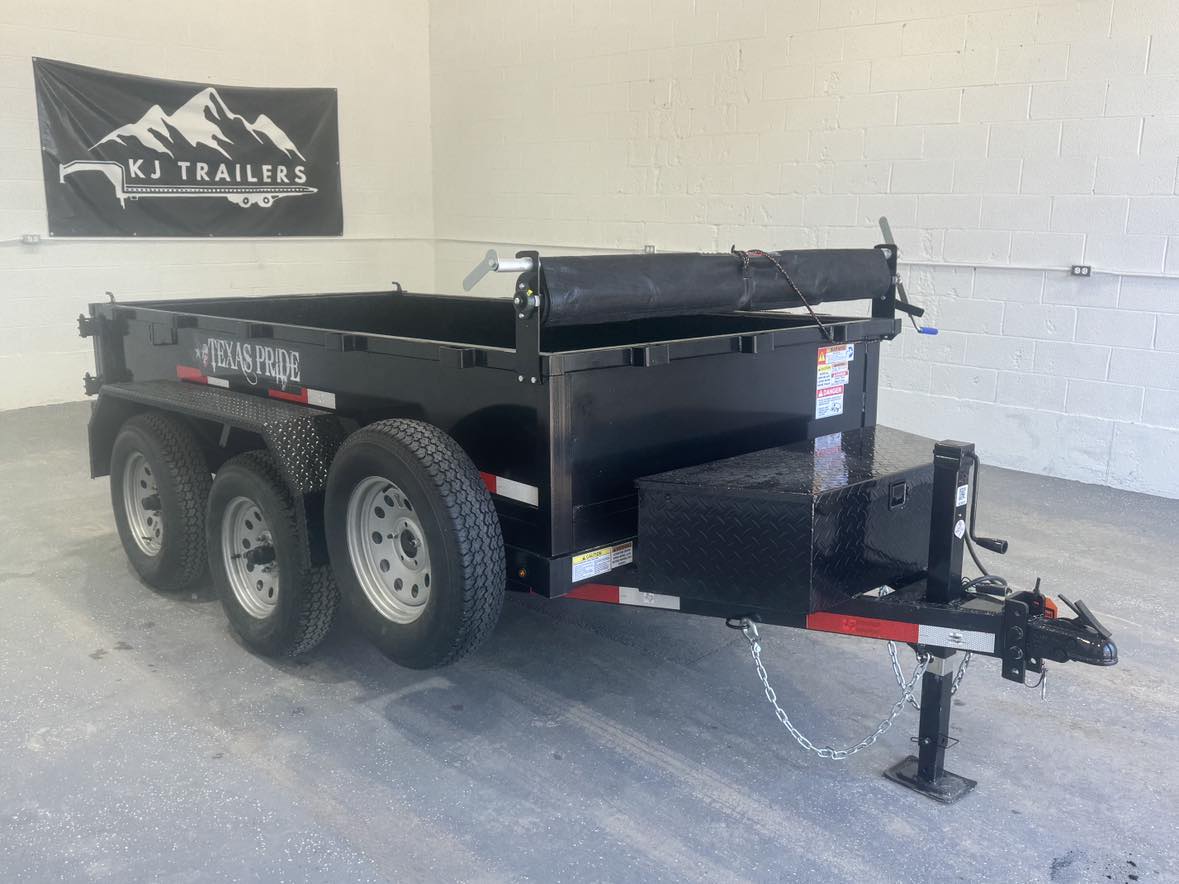

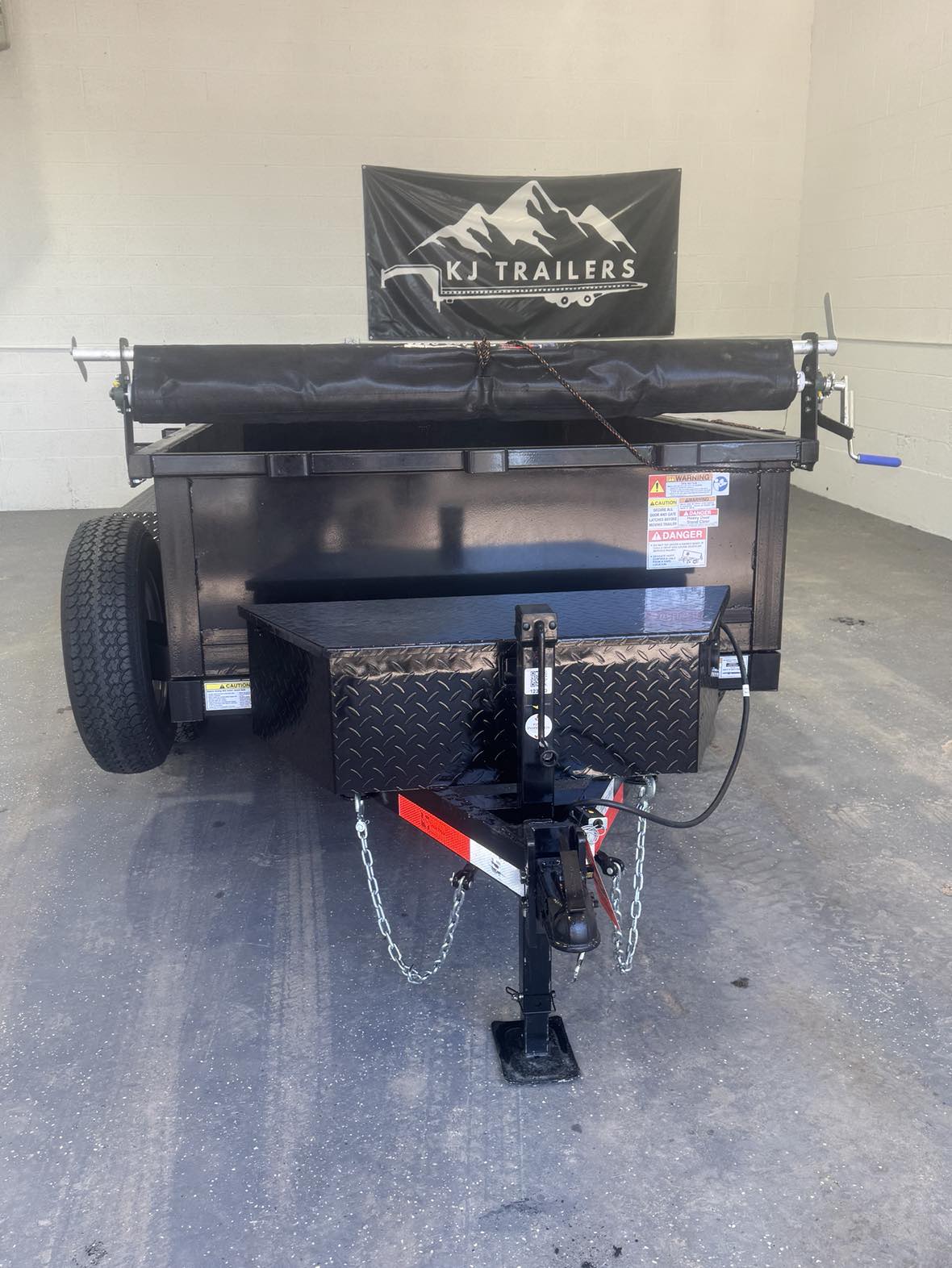

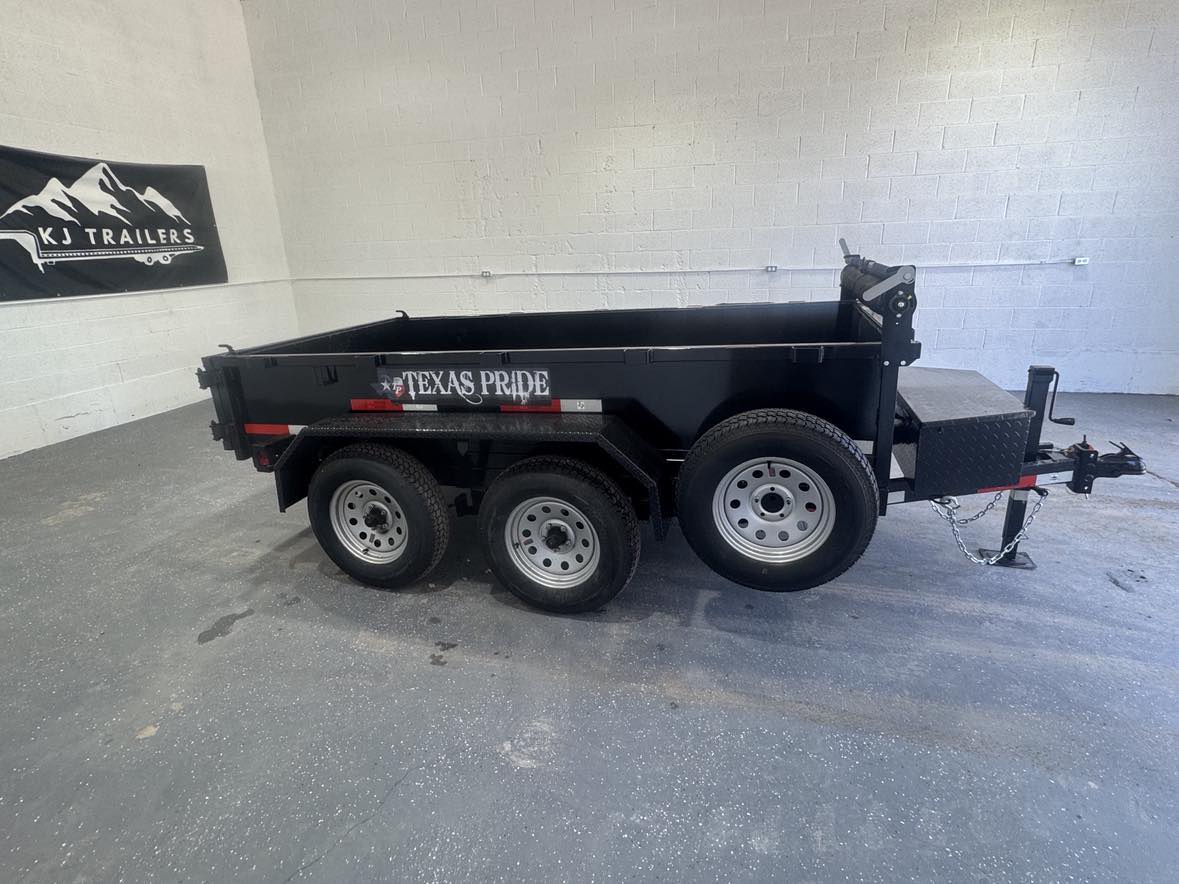

2025 Texas Pride 5x10x1.5 7k BP

Dimensions:

• Deck Width: 5 feet

• Deck Length: 10 feet (120 inches)

• Sidewall Height: 1.5 feet (18 inches)

Weight Capacities:

• Gross Vehicle Weight Rating (GVWR): 7,000 lbs

• Empty Trailer Weight: Approximately 1,600 lbs

• Net Payload Capacity: Approximately 5,400 lbs

Frame and Construction:

• Main Frame: 4" x 2" x 3/16" wall rectangular tubing

• Tongue: 4" channel

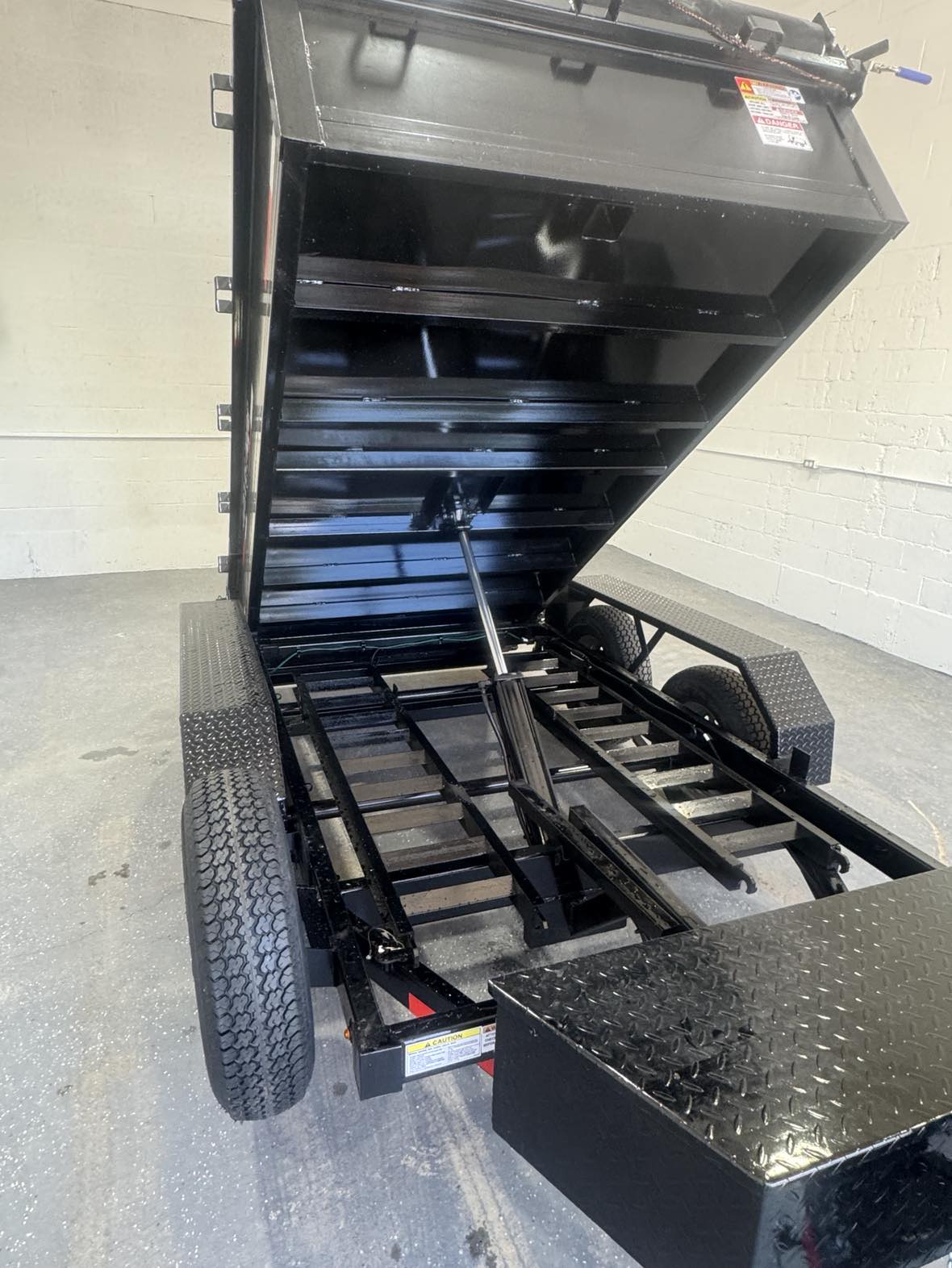

• Tilt Frame: 3" x 2" x 3/16" wall rectangular tubing

• Cross Members: 3" channel

• Bed Flooring: 10-gauge sheet steel

• Bed Siding: 10-gauge sheet steel

Axles and Suspension:

• Axles: Dual 3,500 lb EZ Lube axles with electric brakes on one axle

• Suspension: Double eye springs

Tires and Wheels:

• Tires: New ST205/75D15LRC 6-ply (1,820 lbs each)

• Wheels: 15" x 5" five-hole (white or silver, based on stock)

• Spare Tire: 15" 6-ply mounted spare tire and wheel

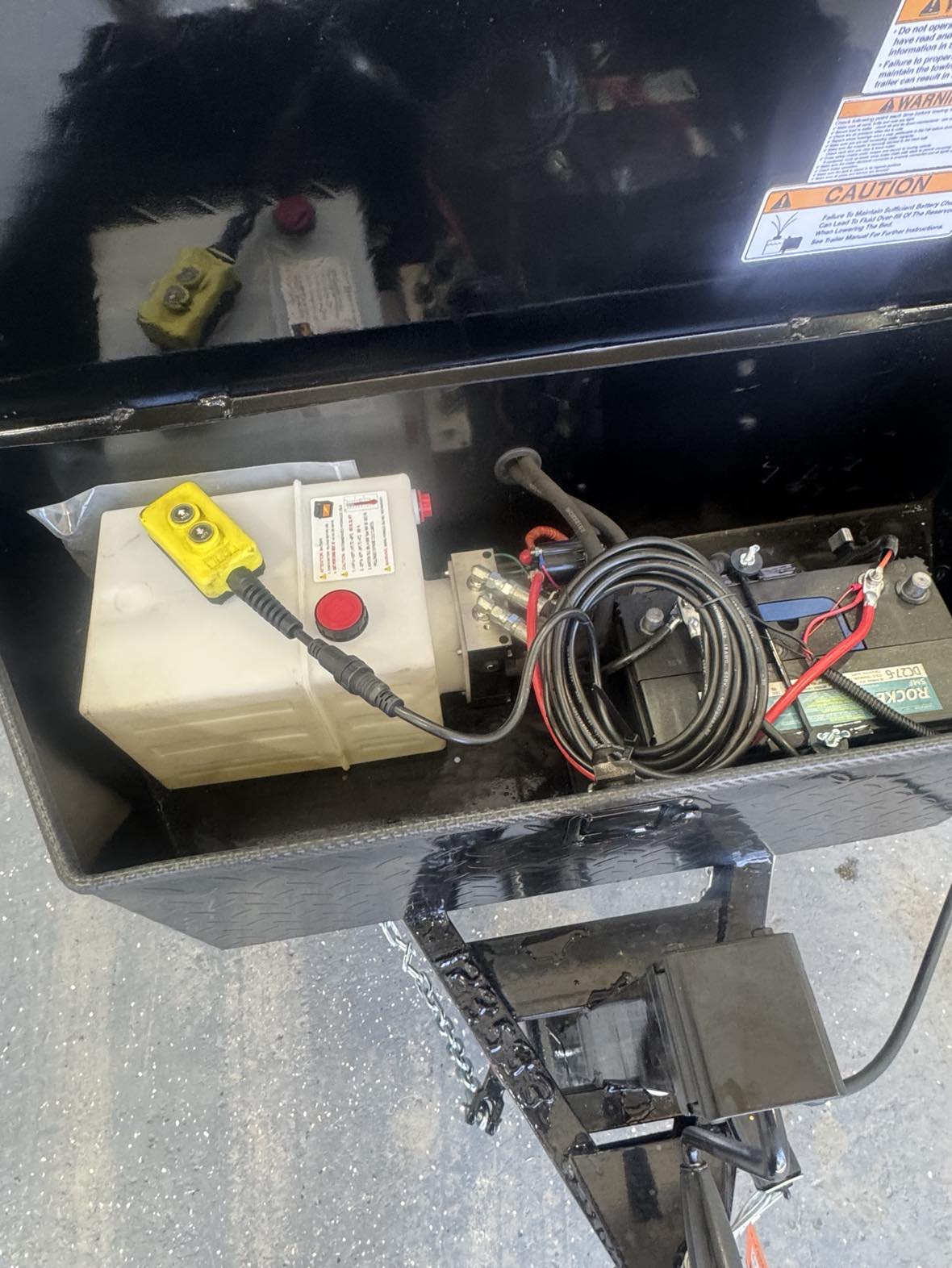

Hydraulics and Power:

• Battery: Group 27 deep cycle marine

• Charging System: Onboard 110v charger and tester (also charges off truck while being towed)

• Pump: Electric over hydraulic (1.7 gpm) - power up / gravity down

• Controller: 10' corded remote control

• Wireless Remote: Bluetooth long-range two-function wireless remote

Additional Features:

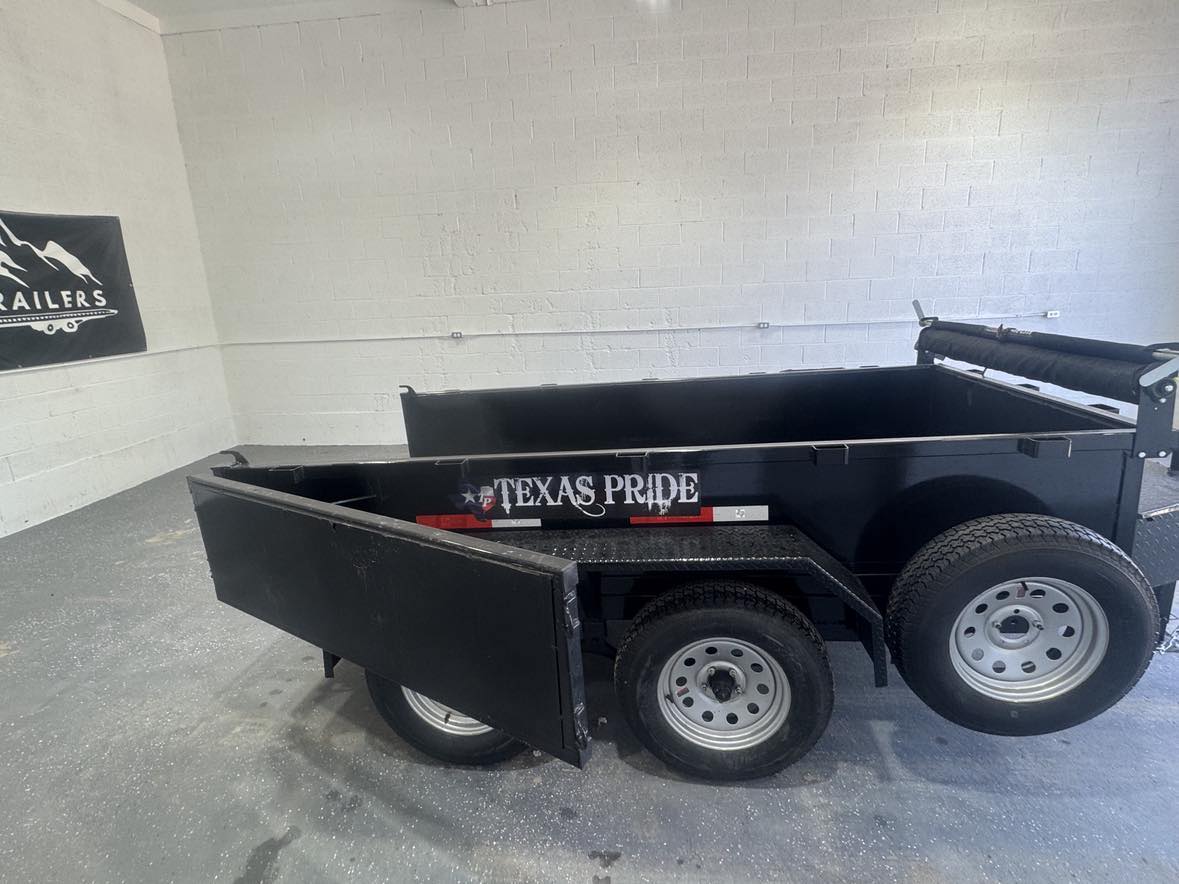

• Rear Door: Double swing doors

• Tie Downs: Stake pockets

• Jack: 7,000 lb drop leg jack

• Fenders: 14-gauge heavy-duty tread plate

• Lighting: All flush mount or recessed lifetime LED stop/turn/clearance lighting

• Wiring: U.S. made sealed modular wiring harness

• Safety Equipment: DOT required emergency breakaway kit and conspicuity tape

• Finish: Fully primed and painted with 2 coats of automotive grade acrylic enamel
